| Model NO.: | GM69Pro | Operating Voltage: | 5V |
|---|---|---|---|
| Operating Current: | 200mA | Interface: | USB Uart |
| Resolution: | 3mil/0.076mm (PCS90%,Code 39) | Size: | 54.8mm L* 31.5mm W * 13.5mm H |
| Scan Mode: | 1280*800 CMOS | Transport Package: | Standard Export Carton Package |
| Specification: | Black | Trademark: | GROW |
| Origin: | China | HS Code: | 8473309000 |
| Supply Ability: | 5000 | Package Size: | 13.00cm * 8.00cm * 9.00cm |
| Package Gross Weight: | 0.100kg | ||
| प्रमुखता देना: | 1280*800 CMOS Barcode Scanner Module,OCR Barcode Scanner Module,1D / 2D Barcode Scanner Module |
||
Scanning Performance | Interface | USB(USB-KBW,USB-COM,HID-POS),TTL-232 | |
| Image sensor | CMOS, Global | ||
| Pixel | 1 million pixel | ||
| Resolution | ≥3mil/0.076mm (PCS90%,CODE 39) | ||
| Read Mode | Manual Mode,Induction Mode,Continuous Mode | ||
| Prompting mode | LED, Buzzer | ||
Read Code Type | 2D | QR code,Micro QR,Data Matrix,PDF417,Micro PDF417 Maxi Code,Aztec Code,Hanxin Code,Pharma Code,Codablock A Code,Codablock F Code,Code16K, Code49,Dot Code,Grid Matrix,Australian Post,British Post,USPS Intelligent Mail,Japanese Post,Planet Code,Postnet Code,UPU 4-State,KIX Code,etc. | |
1D | UPC-A,UPC-E0,UPC-E1,EAN-8,EAN-13,ISBN,ISSN, Code 128,GS1 128,ISBT 128,Code 39,Code 32 Pharmaceutical,Code 93,Code11,Codabar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5, NEC 2 of 5,MSI Plessey,UK Plessey,Posi Code,Telepen Trioptic,BC412,Febraban,Coupon,HongKong 2 of 5(China Post),Korea Post,GS1 DataBar 14 (RSS-14) GS1 Databar Limited,GS1 Databar Expanded GS1 Composite Code,TLC 39 Code,OCR | ||
| Depth of Field | 40mm~900mm (different bar code range) | ||
| Decode speed | 65CM/S | ||
| Contrast | ≥20% | ||
| Scanning angle | Test Conditions:CODE39,10mil/0.25mm,PCS90% Roll: ±360°, Pitch:±60°, Skew: ±55° | ||
| Viewing Angle | H:42° V:27° opposite angles: 49° | ||
| Mechanical/ Electrical Parameters | Weight | 11.8g | |

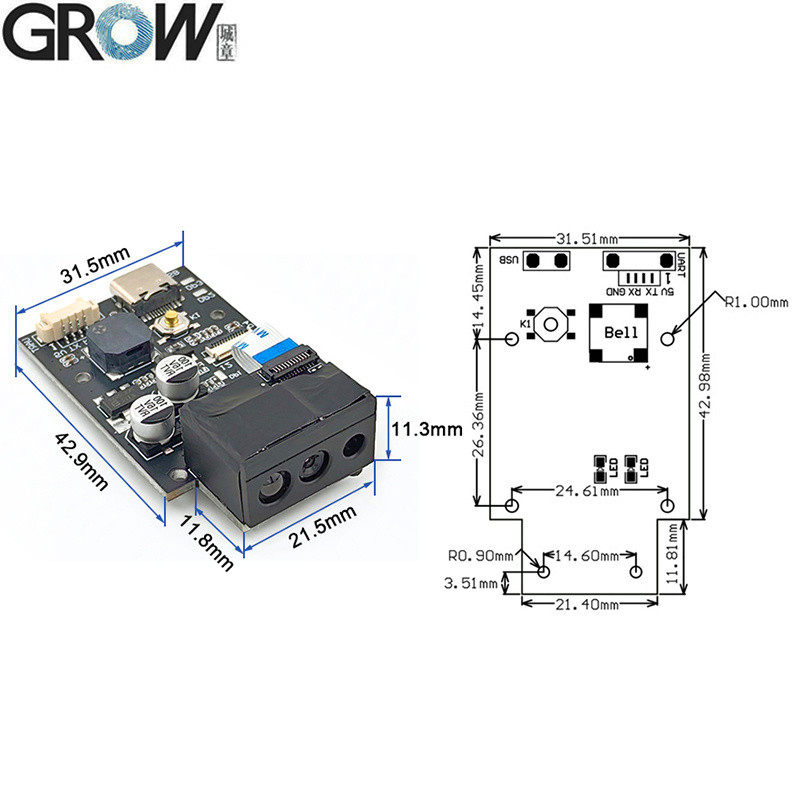

| Dimension | 54.8mm L* 31.5mm W * 13.5mm H | ||
| Operating Voltage | DC 5V | ||
| Current | 200mA(Average Work), 95mA(Standby), 38mA(Sleep) | ||
| Environmental Parameters | Operating Temperature | -20ºC~+50ºC | |
| Storage Temperature | -40ºC~+60ºC | ||
| Operating Humidity | 5%~95%(Non-Condensing) | ||
| Environmental Light | 0~100000LUX | ||
